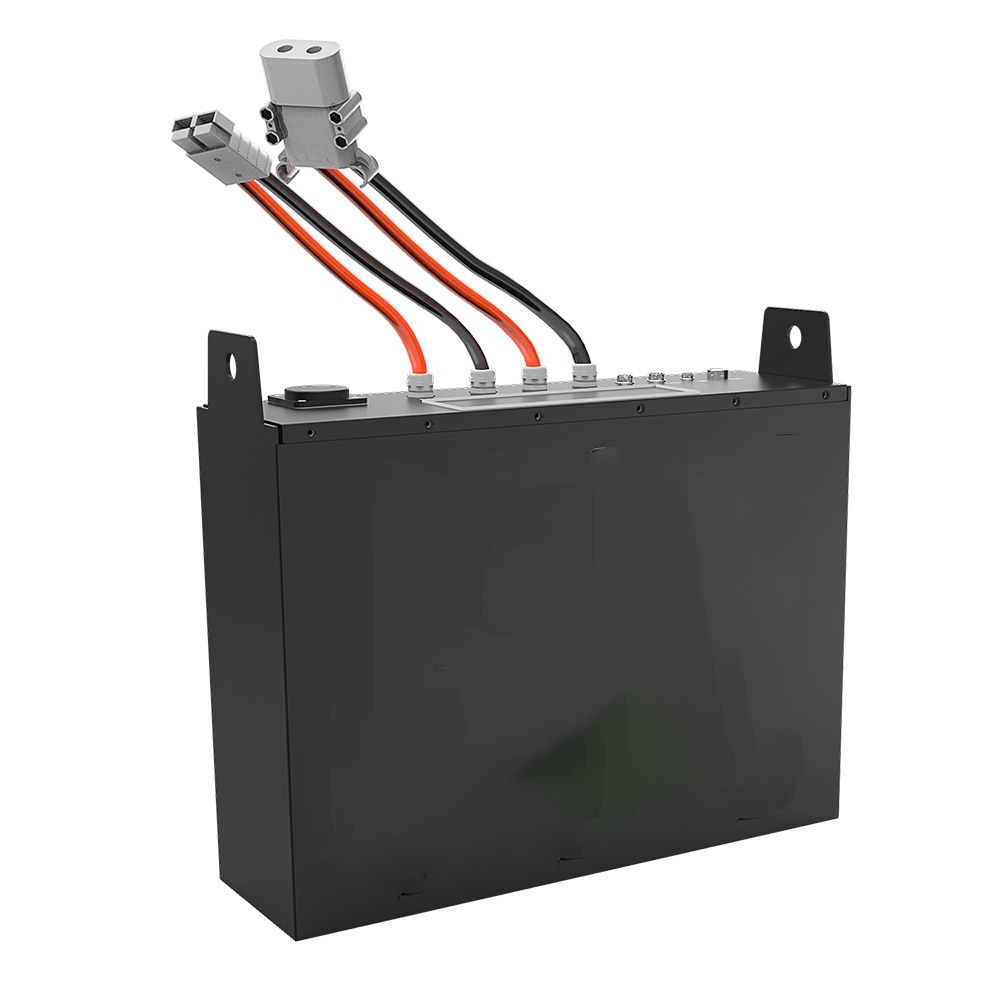

24V 150AH 230AH 210AH LiFePO4 Power Battery Pack
$539.90
Item | General Parameter
| Remark | |
Combination type | 8S1P |
| |
Total energy | 3840Wh | 3.84kWh | |
Cycle life |
≥4000 times | After-sales warranty 5 years /10000 hours (work For a time) | |
Rated capacity | Typical
| 150Ah | standard discharge after charge (for battery pack) |
Minimum
| 150Ah | ||
Rated voltage | 24V | Working voltage | |
Discharge cutoff voltage | 21.6V | Discharge cutoff voltage | |
Charging voltage | 30V | maximum battery voltage | |
Internal resistance | ≤60mΩ (the value will be adjusted for different cell and PACK scheme) | Under half electric state, use AC method to measure internal resistance 1kHz | |
Maximum discharge duration current |
280A |
|
Maximum instantaneous discharge current |
300A(15S) |
|
Working temperature range | Charge: 0~55℃ | Optional heating function, <0 °C automatic heating. |
| Discharge: -20~55℃ |
|
mm Size | 650（L）*200（W）*500（H） ±2mm or customized | See the 3D schematic diagram |
weight | 65kg | Subject to actual measurement |
