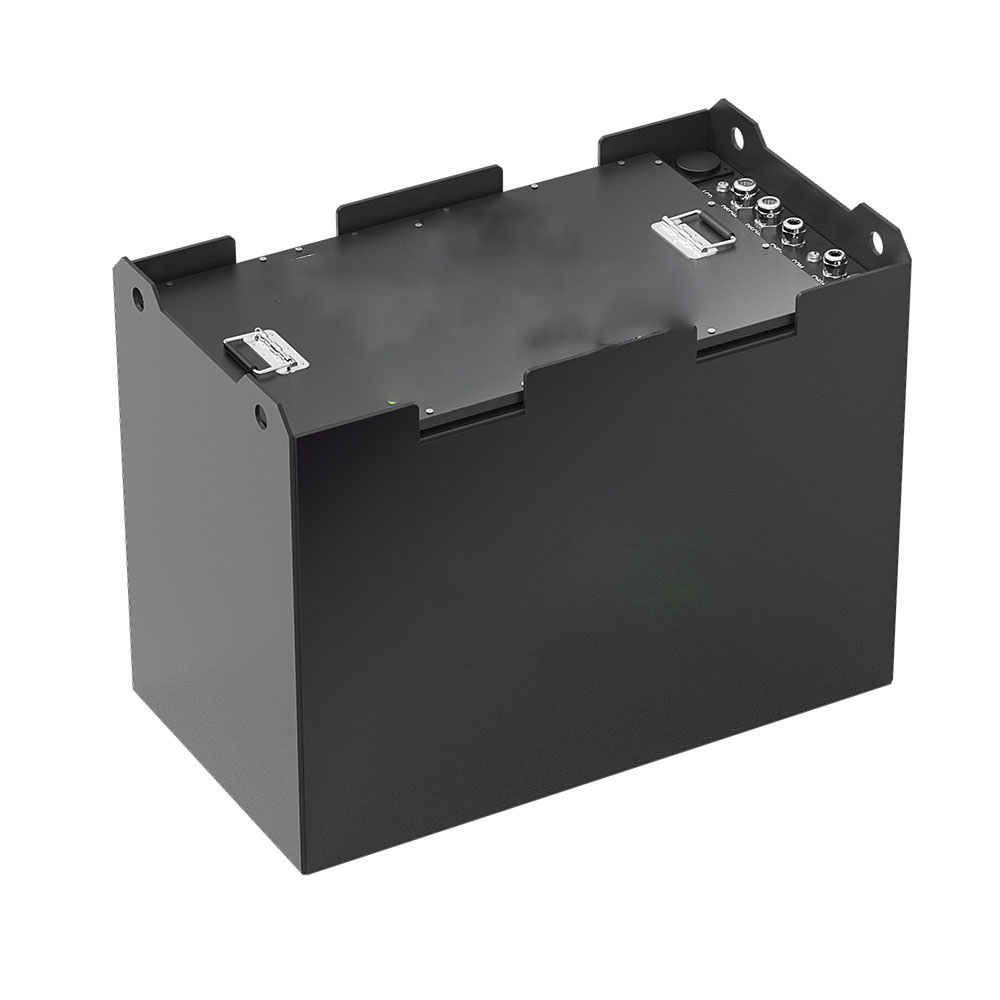

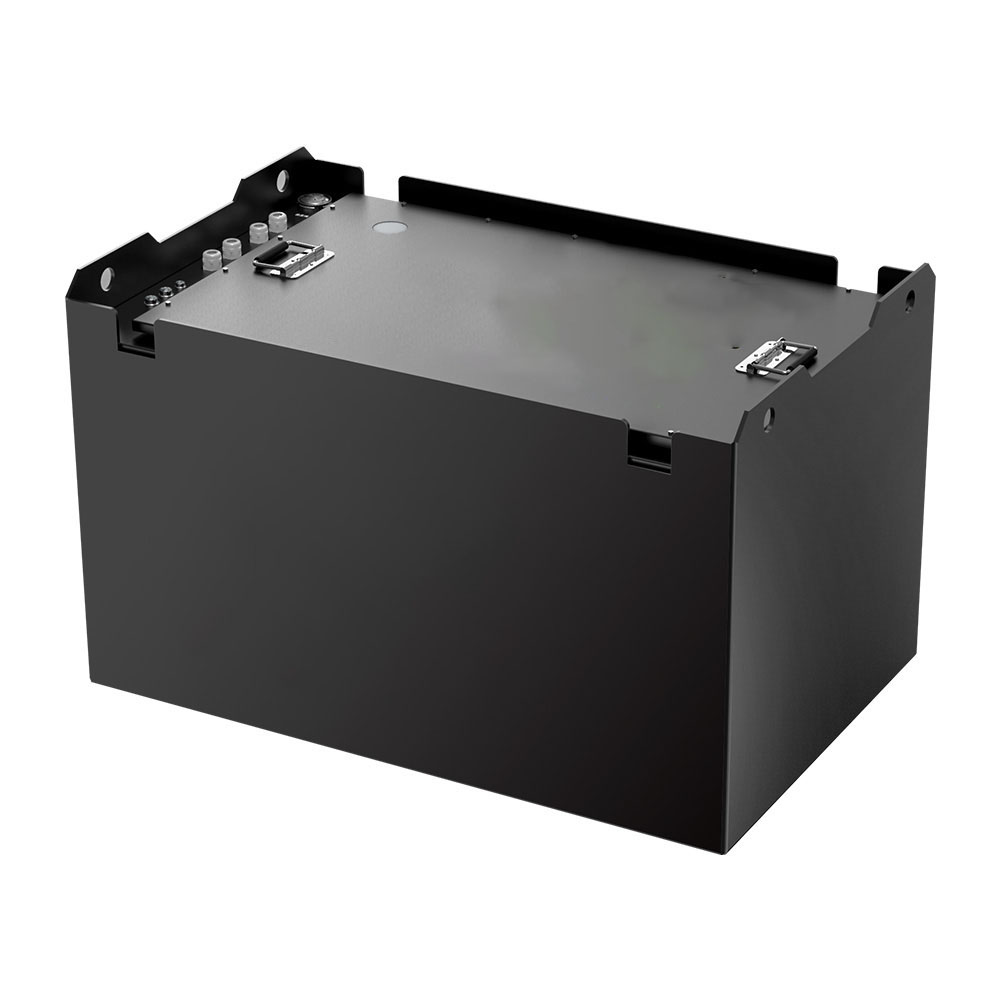

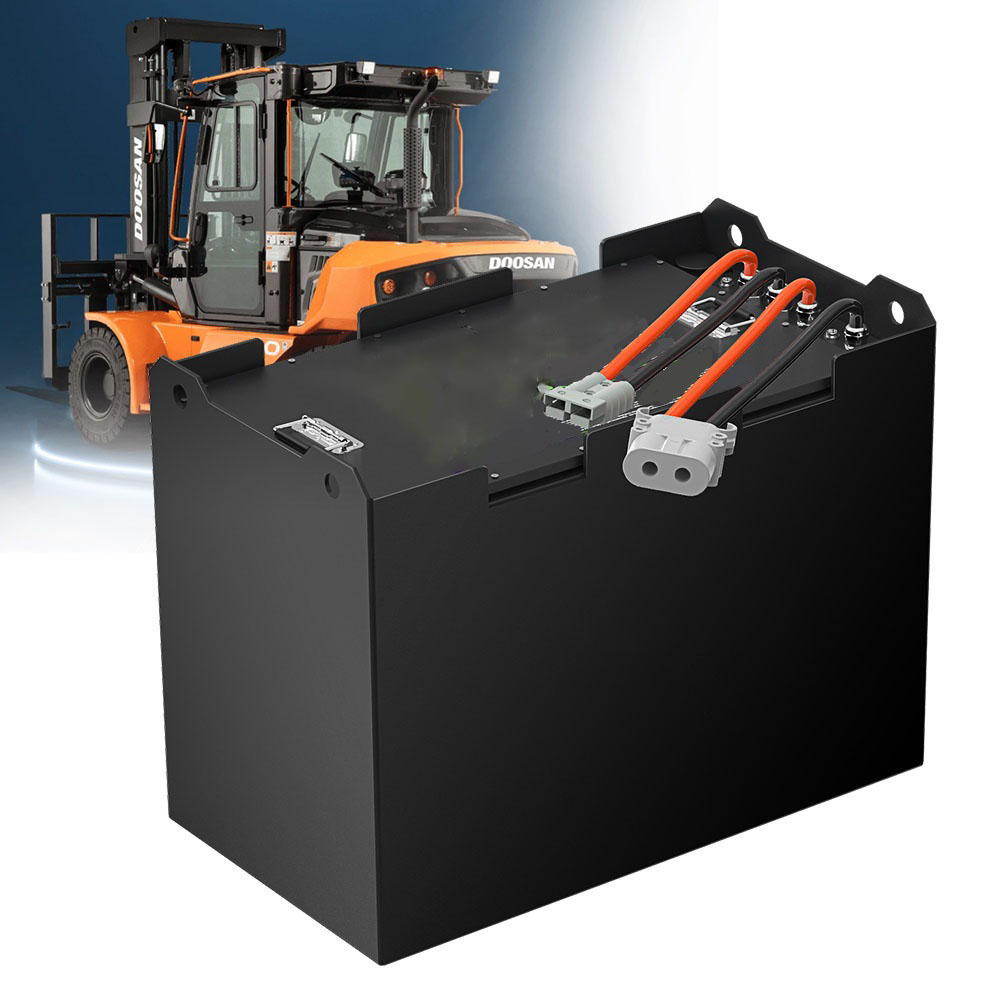

48V 300AH Lithium Battery Power System for forklift and sight seeing cart
$1799.00
Item | General Parameter
| Remark | |
Combination type | 15S1P |
| |
Total energy | 14400Wh | 14.40 kWh | |
Cycle life |
≥4000 times | After-sales warranty 5 years /10000 hours (work For a time) | |
Rated capacity | Typical
| 300Ah | standard discharge after charge (for battery pack) |
Minimum
| 300Ah | ||
Rated voltage | 48V | Working voltage | |
Discharge cutoff voltage |
40.5V | Discharge cutoff voltage | |
Charging voltage | 54.75V | maximum battery voltage | |
Internal resistance | ≤60mΩ (the value will be adjusted for different cell and PACK scheme) | Under half electric state, use AC method to measure internal resistance 1kHz | |
Consistency |
The monomer pressure difference at the end of charge and discharge is less than 250mV | What is recorded is the highest/low 3.65V/2.5V instantaneous pressure difference in a single charging section |
Maximum discharge duration current |
250A |
|
Maximum instantaneous discharge current |
450A(15S) |
|
Working temperature range | Charge: 0~55℃ | Optional heating function, <0 °C automatic heating. |
Discharge: -20~55℃ | ||
mm Size | 1000（L）*300（W）*300（H） ±2mm | See the 3D schematic diagram |
weight | 125kg | Subject to actual measurement |
Shipment of products with electricity | 50%-70% |
|
Package material | Carton box or pallet |
