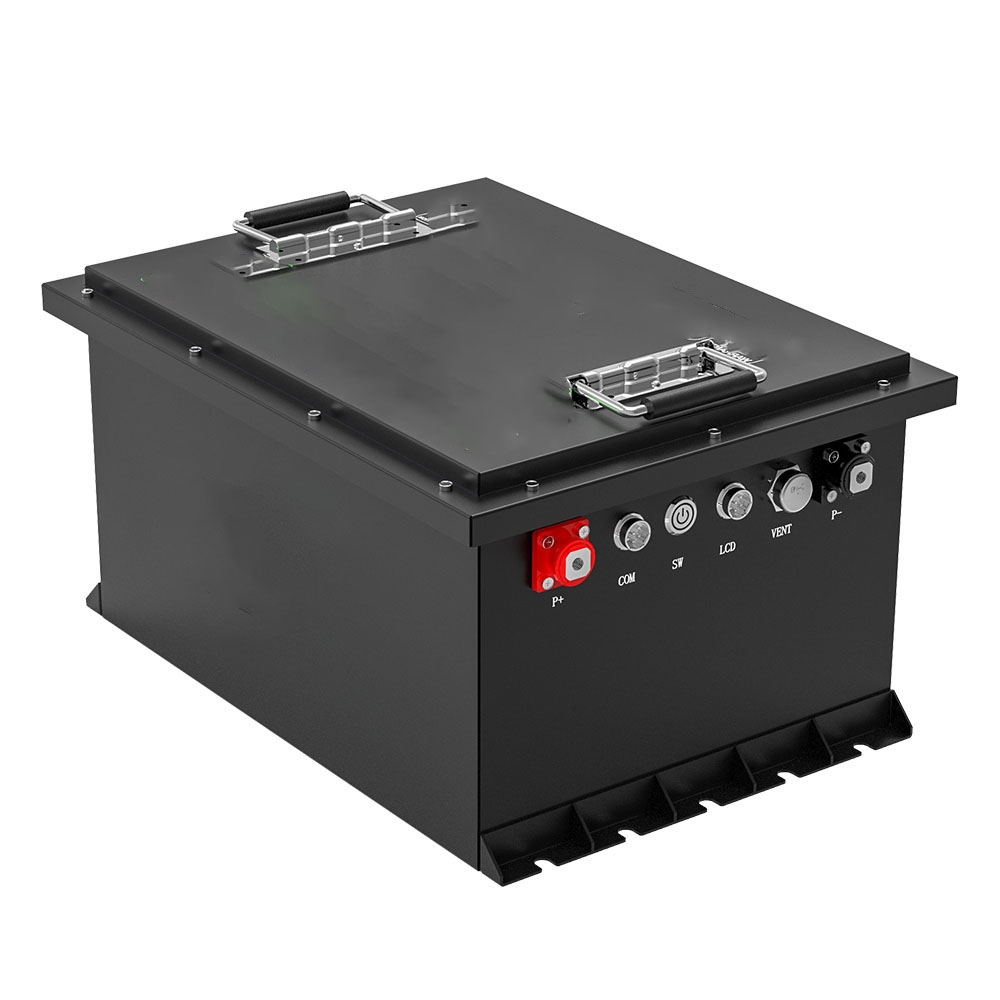

36V100ah 105AH Lithium Iron Phosphate Battery for 4 seats 2 seats club cart golf cart
$617.60
Item | General Parameter
| Remark | |
Combination type | 15S1P |
| |
Total energy | 4032Wh | 4.32kWh | |
Cycle life |
≥4000 times | After-sales warranty 5 years /10000 hours (work For a time) | |
Rated capacity | Typical
| 105Ah | standard discharge after charge (for battery pack) |
Minimum
| 105Ah | ||
Rated voltage | 38.4V | Working voltage | |
Discharge cutoff voltage |
32.4V | Discharge cutoff voltage | |
Charging voltage | 45V | maximum battery voltage | |
Internal resistance | ≤60mΩ (the value will be adjusted for different cell and PACK scheme) | Under half electric state, use AC method to measure internal resistance 1kHz | |
Maximum discharge duration current |
210A |
|
Maximum instantaneous discharge current |
210A(15S) |
|
Working temperature range | Charge: 0~55℃ | Optional heating function, <0 °C automatic heating. |
Discharge: -20~55℃ | ||
mm Size | 433（L）*334（W）*430（H） ±2mm | See the 3D schematic diagram |
weight | 42kg | Subject to actual measurement |
