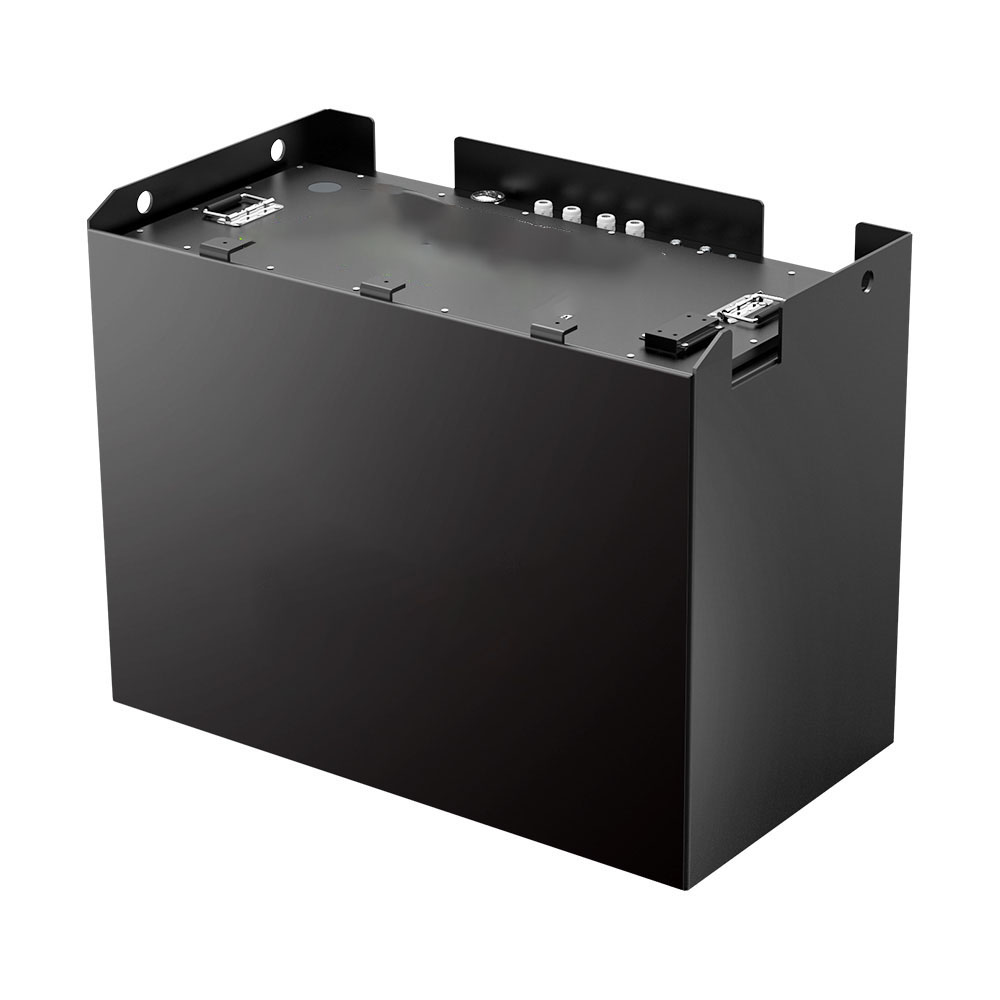

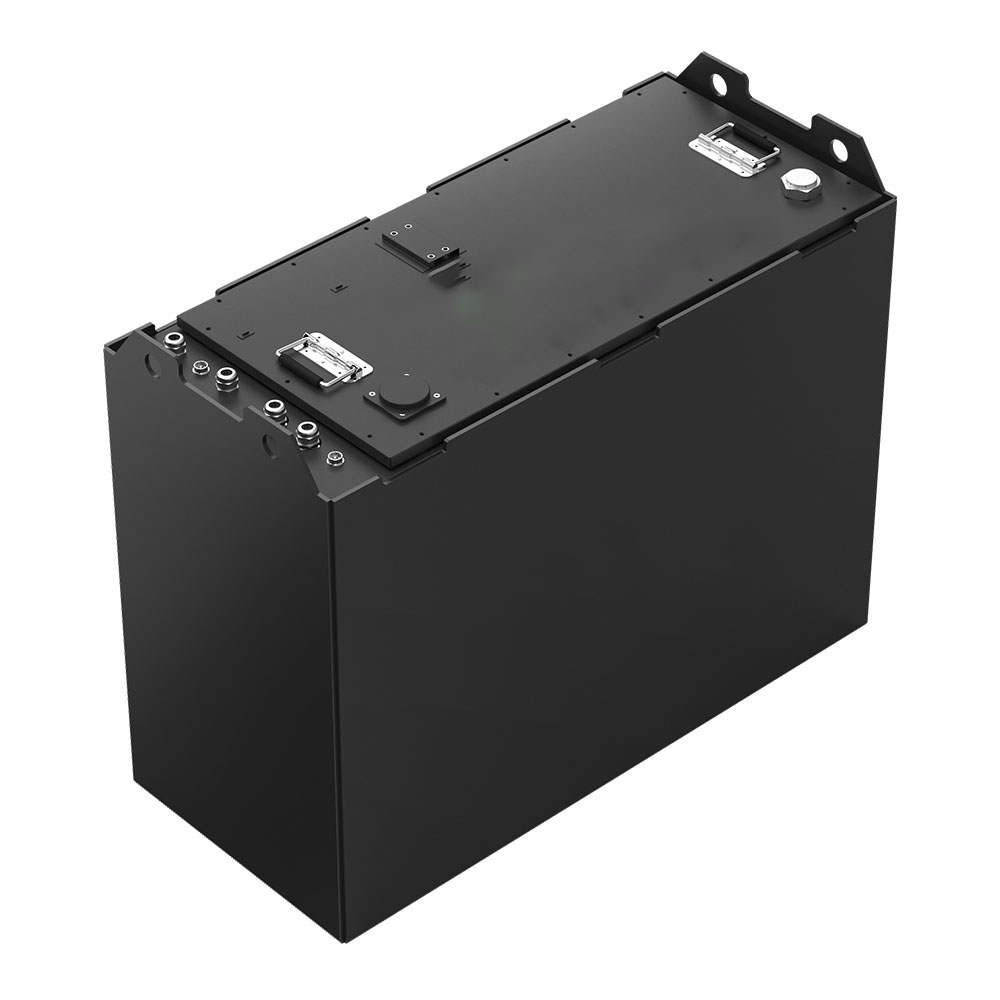

48V 560AH forklift Lithium Ion Battery Pack
$3799.90
Item | General Parameter
| Remark | |
Combination type | 15S1P |
| |
Total energy | 26880Wh | 26.80 kWh | |
Cycle life |
≥4000 times | After-sales warranty 5 years /10000 hours (work For a time) | |
Rated capacity | Typical
| 560Ah | standard discharge after charge (for battery pack) |
Minimum
| 560Ah | ||
Rated voltage | 48V | Working voltage | |
Discharge cutoff voltage |
40.5V | Discharge cutoff voltage | |
Charging voltage | 54.75V | maximum battery voltage | |
Internal resistance | ≤60mΩ (the value will be adjusted for different cell and PACK scheme) | Under half electric state, use AC method to measure internal resistance 1kHz | |
Working temperature range | Charge: 0~55℃ | Optional heating function, <0 °C automatic heating. |
| Discharge: -20~55℃ |
|
mm Size | can be customized | See the 3D schematic diagram |
